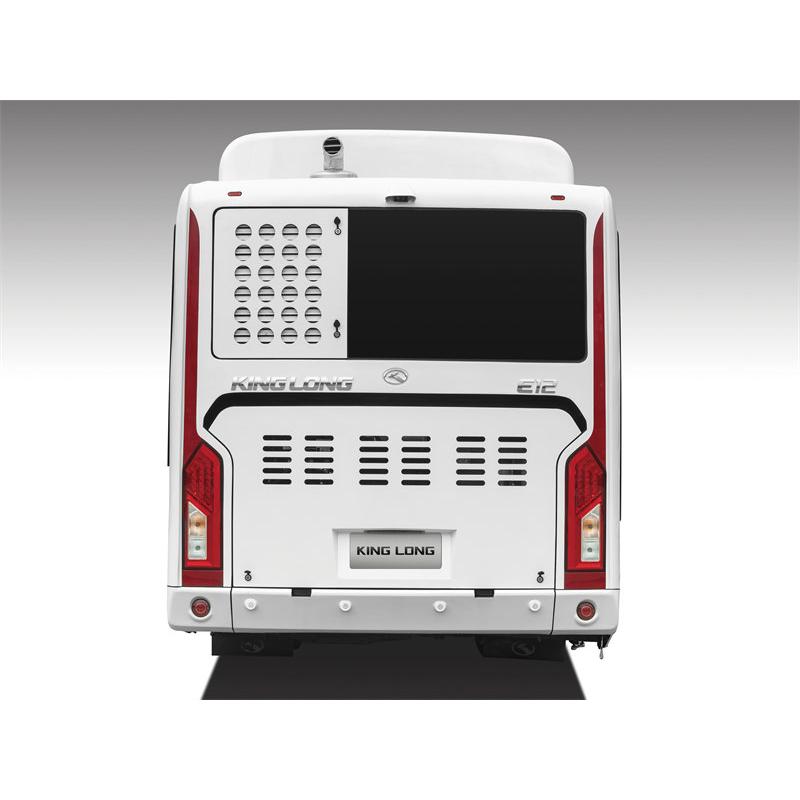

Tiếng việtKing Long 12M Hybrid Electric Bus
King Long hybrid electric buses combine a primary power source, an energy storage system, and an electric motor to achieve a combination of emissions, fuel economy, and range benefits.
Item NO.:
XMQ6127JGWE
King Long hybrid electric buses combine a primary power source, an energy storage system, and an electric motor to achieve a combination of emissions, fuel economy, and range benefits.
Item NO.:
XMQ6127JGWE| Model | XMQ6127JGWE |
| Driving(LHD/RHD) | LHD |
| TECHNICAL PARAMETERS | |
| Body structure | Monocoque |
| Length*Width*Height (mm) | 11280*2500*3400 |
| Seats | 26+1+1 |
| Max.passenger capacity | 74 |
| Battery（kwh） | 50.45 |
| Maximum speed（km/h） | ≥70 |
| Gradeability（%） | ≥15 |
| MOTOR | |
| Fuel tank capacity (L) | 250 |
| Engine（Hp） | 280 |
| ※ As per customers' request based on real road condition | |
| Transmission | Automatic |
| Model | Permanent magnet synchronous motor |
| Peak power（kw） | 118 |
| CHASSIS | |
| Suspension system | Front 2 Rear 4; Air Suspension |
| Front axle(T) | ≥7.5 |
| Rear axle（T） | 13 |
| ABS | ● EBS+ESC |
| ◎ EBS | |
| Brake | Front & Rear: Disc |
| Electric power steering pump | Dual-source electric steering pump |
| Tire | 305/70R22.5 |
| Electromagnetic fan | King-long ICS |
| Body lifting device | ECAS |
| OTHER CONFIGURATION | |
| Air conditioner（KW） | ◎32000 Kcal/h |
| Heating and defrosting states | ● Defrosting from engine heat source |
| ◎ High voltage, electric defrosting | |
| ◎ Defrosting with independent heater | |
| Electrical instrument | ● CAN System |
| Automobile data recorder | ● Tachograph |
| Player | ◎ MP3 Player |
| ◎ DVD Player | |
| ◎ Hard Disk Player | |
| Middle door and back-up monitor | ◎ LCD Monitor |
| Guideboard | ◎ Route Display |
| NEW TECHNOLOGY | |
| On-board computer | ● |
| 360 panoramic view | ◎ |
| EPB | ◎ |
| Note: ● standard specification; ◎ optional specification; ※ special clarification; those without symbols are standard specification | |
