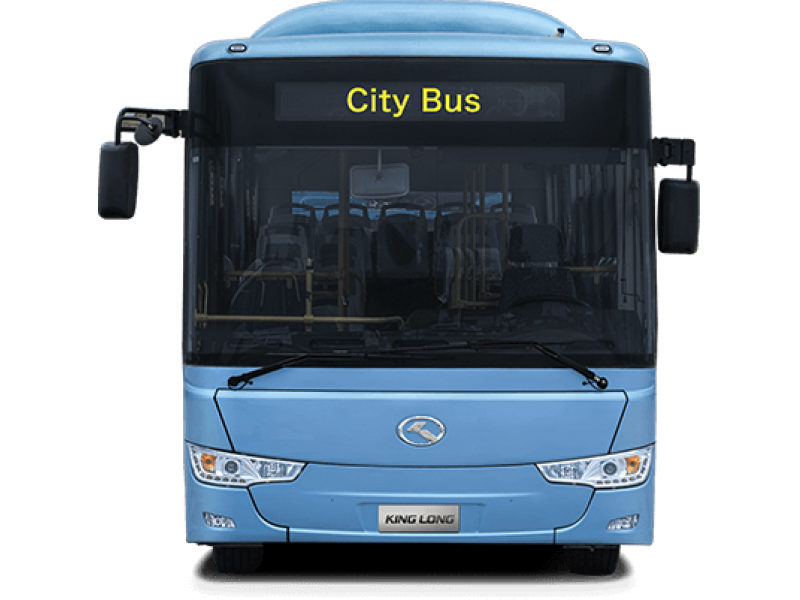

10m 35 seats Low Entry and Two Steps Diesel City Bus

This city bus is designed based on the typical city buses, but it innovatively employs a square contour design with small round corners.
The front bumpers and outline marker lamps are optimized to greatly improve the vehicle aesthetics and utility.
The public transit bus features high operation stability, excellent performance, and reasonable internal layout to extend passengers’ standing area.

  • Item NO.:

    XMQ6106G
Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products
Model XMQ6106G Diesel, Low Entry XMQ6106G Diesel Two Steps
Driving(LHD/RHD) LHD LHD
TECHNICAL PARAMETERS
Body structure Semi-integral Semi-integral
Length*Width*Height (mm) 10480*2500*3230 10480*2500*3230
Maximum speed（km/h） ＞80 ＞80
Gradeability（%） ＞30% ＞30%
CAPACITY
Seats 33+1+1 33+1+1
Maximum passenger capacity 86 85
CHASSIS
Fuel tank capacity (L) ● 180 ● 180
◎ 240
Engine（Hp） 245 245
※ As per customers' request based on real road condition  ※ As per customers' request based on real road condition
Transmission ● Manual ● Manual
◎ Automatic ◎ Automatic
Suspension system Front 2 Rear 4;  Air Suspension Leaf Spring
Front Axles（T） 7.5 5.5
Rear Axles（T） 11.5 11
ABS ● ABS ● ABS
◎ABS+ASR ◎ABS+ASR
◎ EBS
Brake system (Disc/Drum) ● Front: disc; Rear: drum ● Front: disc; Rear: drum
◎ Front & Rear: Disc ◎ Front & Rear: Disc
Steering system power steering power steering
Tire ● 275/70R22.5 ● 11R22.5
◎ 295/80R22.5
Electromagnetic fan  ● Driven directly by engine ● Driven directly by engine
◎ Electromagnetic clutch fan ◎ Electromagnetic clutch fan
◎ King-long ICS ◎ King-long ICS
Body lifting device ● without ● without
◎Chinese lifting device
◎ ECAS
BODY
Doors Double leaf, inward opening Double leaf, inward opening
Side windows Tempered Glass Tempered Glass
Driver seat Air-dampened driver seat Air-dampened driver seat
Passenger seats Plastic city bus seat Plastic city bus seat
Mirror type  Iron-framed rear view mirror Iron-framed rear view mirror
Aluminum bracket rear view mirror Aluminum bracket rear view mirror
OTHER CONFIGURATION
Air conditioner ◎30000Kcal/h ◎30000Kcal/h
Heating and defrosting states ● Defrosting from engine heat source ● Defrosting from engine heat source
◎ Defrosting with independent heater ◎ Defrosting with independent heater
Electrical instrument ●CAN ●CAN
◎ CAN System ◎ CAN System
Automobile data recorder  ◎ Tachograph ◎ Tachograph
Player ◎ MP3 Player ◎ MP3 Player
◎ DVD Player ◎ DVD Player
◎ Hard Disk Player ◎ Hard Disk Player
Middle door and back-up monitor ◎  ◎
Guideboard ◎  ◎
NEW TECHNOLOGY
On-board computer ◎  ◎
360 panoramic view ◎  ◎
EPB ◎  ◎
Note: ● standard specification; ◎ optional specification; ※  special clarification; those without symbols are standard specification
