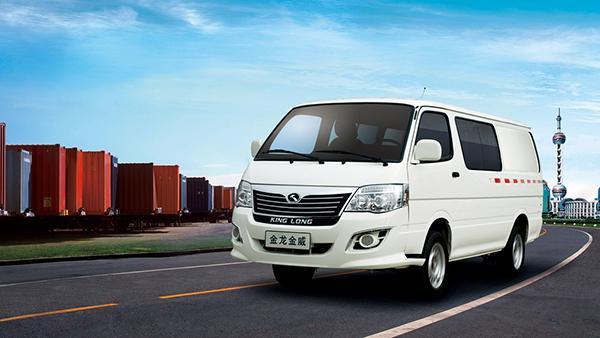

Kingwin EV-Cargo Van
According to the customer's corporate culture and special requirements, the body color, advertisement and appearance can be specially produced to meet your needs in different scenarios.
According to the customer's corporate culture and special requirements, the body color, advertisement and appearance can be specially produced to meet your needs in different scenarios.
Kingwin EV, with updated style, chrome plated trimming and front-position LED lamps, is more stylish. Mature and reliable powertrain system makes failure rate low. The economical and practical model leads counterparts in low-end market. EV will not only bring you low operation cost but also silent driving experience.
There is no need to replace the vehicle's oil filter, fuel filter and air filter since it is of easy maintenance.
MODEL | Model No. | XMQ5030XXYBEVL03 | XMQ5030XXYBEVL04 |
Vehicle type | Cargo Van | Cargo Van | |
Technology maturity | In mass production | In mass production | |
Dimension | L*W*H(mm) | 5200*1700*1960/2050(flat/middle roof) | 5200*1700*1965/2050/2250(flat/middle/high roof) |
Front/rear wheel tread | 1450/1430 | 1450/1450 | |
Front/rear overhang | 1200/1110 | 1300/1110 | |
Wheel base | 2890 | 2890 | |
Cargo Space | Loading capacity (m3) | 6.85/7.28(flat/middle roof) | 6.85/7.28/8.24 (flat/middle/high roof) |
Mass | Curb mass | 1660 | 1880 |
Gross vehicle weight | 2840 | 3260 | |
Front/Rear axle load(GVW) | 1320/1520 | 1460/1800 | |
Number of people approved | 2 | 2 | |
Power | Motor rated/max power | 30/60 | 40/80 |
Motor rated/max torque | 95/220 | 128/280 | |
Max speed(km/h) | 100 | 100 | |
Max gradeability | 20 | 20 | |
Economy | Battery capacity(Kwh) | 41.86 | 50.232 |
Battery type | Lithium Iron Phosphate | Lithium Iron Phosphate | |
Battery brand | CATL | CATL | |
Battery energy density | 137.6 | 140.4 | |
NEDC cruising range (km) | 280(announced range) | 320(announced range) | |
Electric energy consumption under comprehensive working conditions k.W.h/100km | 16 | 16.8 | |
EKG | 0.271 | 0.234 |
