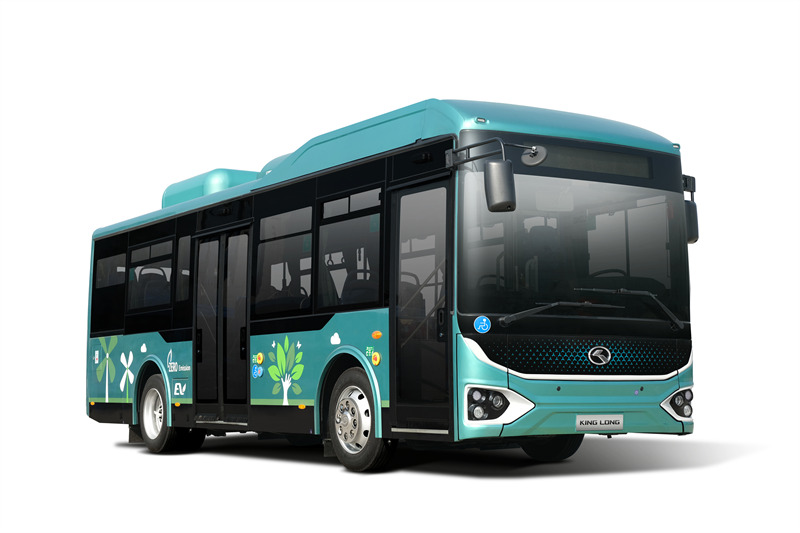

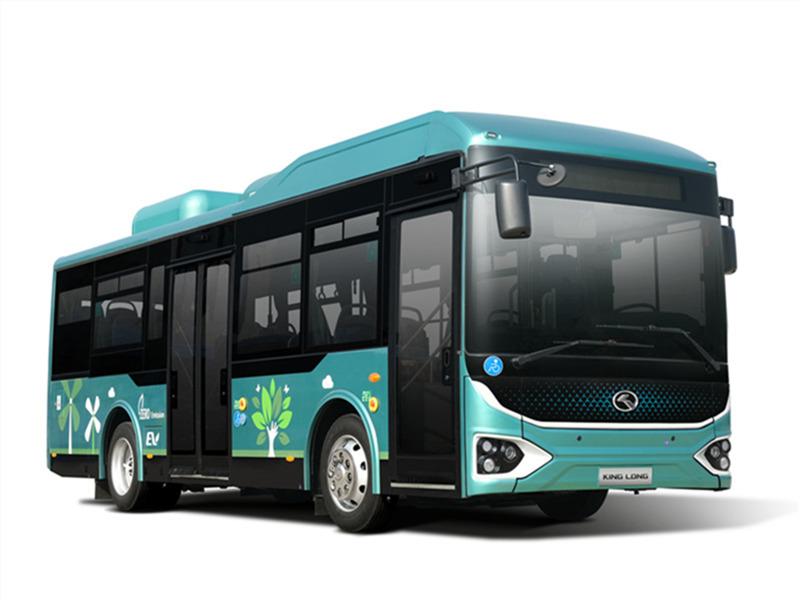

9m Pure Electric City Bus

Smart Electric City Bus Always Delighting

Smart Electric City Bus Always Delighting
Powered by 210.56KWH CATL battery, XMQ6900BGWE is a medium full electric bus, ideal for city branch lines and suburban main lines. With multiple upgrade and optimization, XMQ6900BGWE adds more glory to the beautiful city with its more pleasing appearance, more comfortable ride and smarter operation.

Impressive Look with Modular Design
XMQ6900BGWE is developed based on the modular design concept with meticulous parameter analysis. With elegant combination of sleek styling and rounded edges, it is bound to hit the streets. The integrated built-in combined LED headlights and three-section rear bumper are optimized for both beauty and practicability, making it a dazzling sight on city streets.

Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products
Model XMQ6900DGWBEV, Full electric, Low Entry XMQ6900BGWE; Full Electric, Low Entry
Driving(LHD/RHD) LHD LHD
TECHNICAL PARAMETERS
Body structure Monocoque Monocoque
Length*Width*Height (mm) 9180*2450*3250 8990*2450*3270
Seats 25+1+1 25+2+1
Max.passenger capacity 62 64
Battery（kwh） 281.9 281.9
210.6 210.6
Maximum speed（km/h） ≥70 ≥70
Gradeability（%） ≥20 ≥20
MOTOR
Model Triple-phase asynchronous Permanent magnet synchronous motor
Peak power（kw） 245 245
CHASSIS
Suspension system Front 2 Rear 4;  Air Suspension Front 2 Rear 4;  Air Suspension
Front axle(T) 5 5
Rear axle（T） 9.5 9.5
ABS EBS3 EBS
Brake Front & Rear: Disc Front & Rear: Disc
Electric power steering pump Dual-source electric steering pump Dual-source electric steering pump
Tire 265/70R19.5; TPMS ● 265/70R19.5      ◎ 255/70R22.5
Electromagnetic fan  King-long ICS King-long ICS
Body lifting device ECAS ● Without       ◎Chinese lifting device       ◎ ECAS
OTHER CONFIGURATION
Air conditioner（KW） Xueyuan 20KW
Heating and defrosting states Valeo Diesel Heater; Cooling & heating defrosting ● Low voltage, electric defrosting    ◎ High voltage, electric defrosting    ◎Defrosting with independent heater
Electrical instrument ACTIA Dashboard ; CAN System ● CAN System
Automobile data recorder  VDO ●
Player MP3 Player ◎ MP3 Player    ◎ DVD Player    ◎ Hard Disk Player
Middle door and back-up monitor LCD Monitor ◎ LCD Monitor
Guideboard Route Display ◎ Route Display
NEW TECHNOLOGY
On-board computer ● ●
360 panoramic view ◎  ◎
EPB ◎  ◎
Note: ● standard specification; ◎ optional specification; ※  special clarification; those without symbols are standard specification



Details:

Add A Beautiful Look To A City

XMQ6900BGWE with elegant combination of sleek styling and rounded edges, it is bound to hit the streets. High brightness integrated built-in combined LED headlights, three-section rear bumper and large penetrating window design give the city more beautiful design elements.

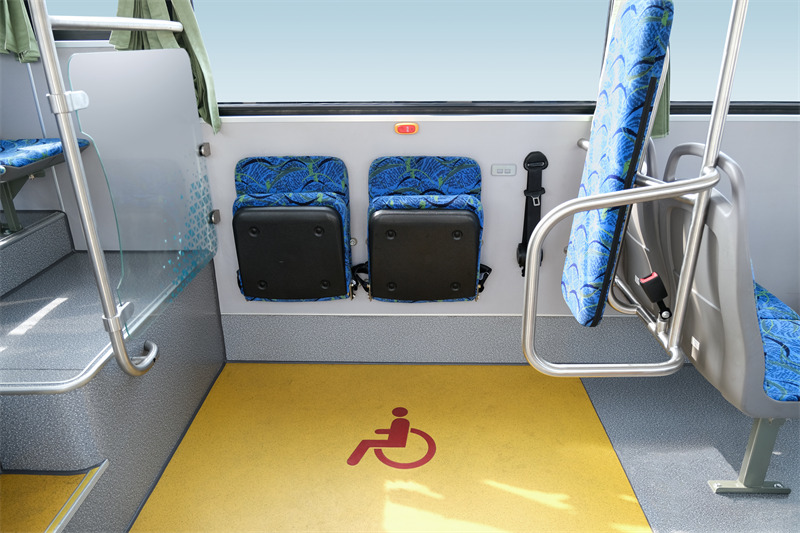

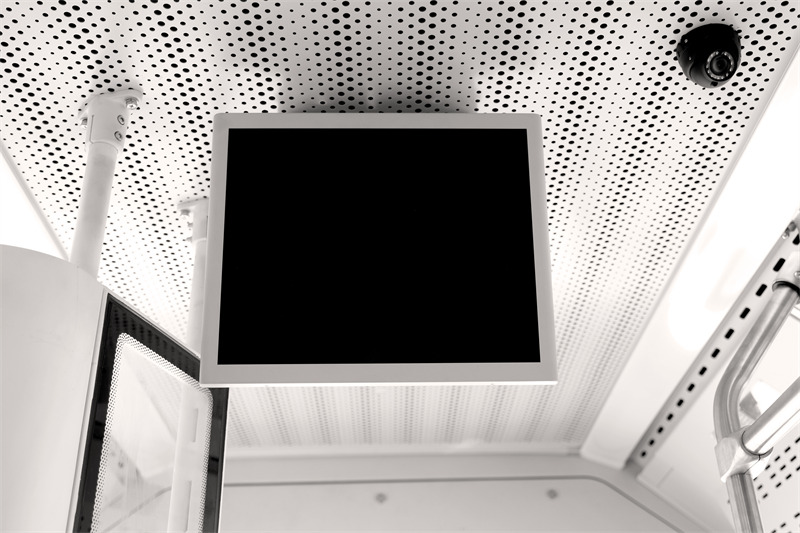

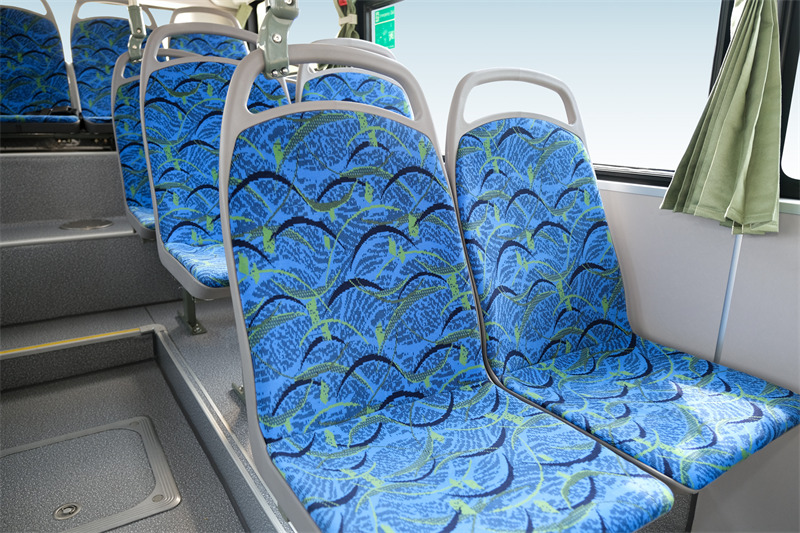

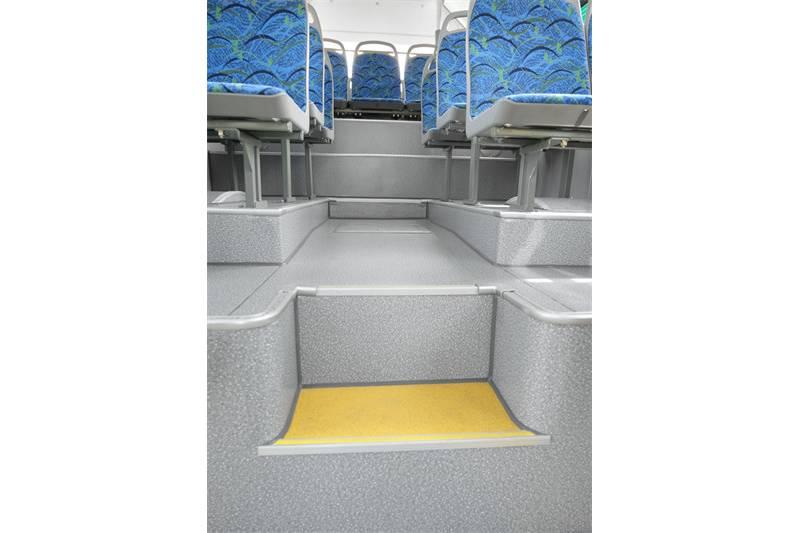

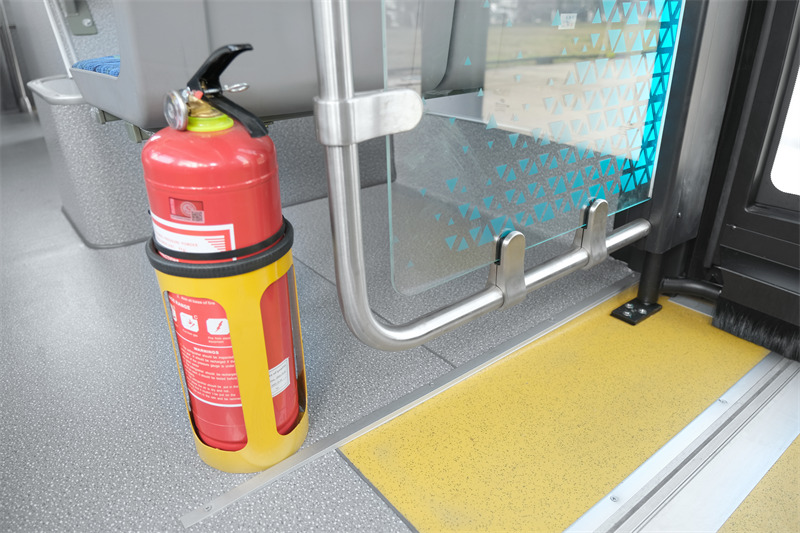

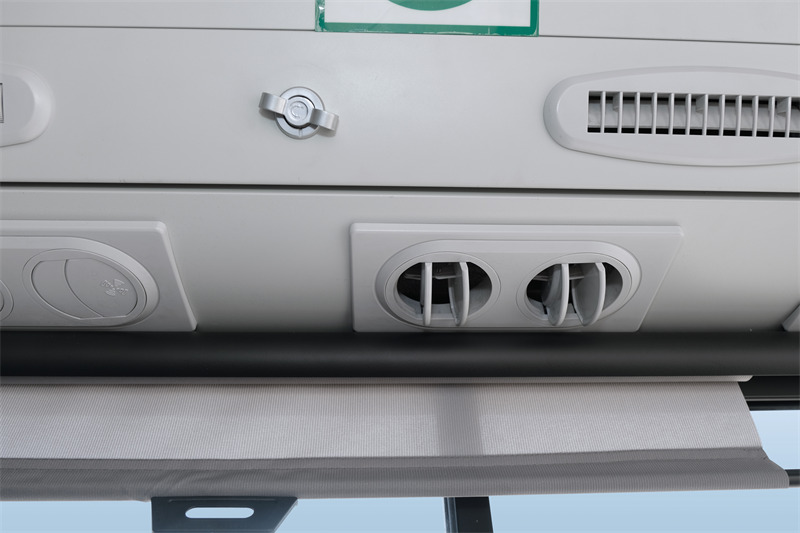

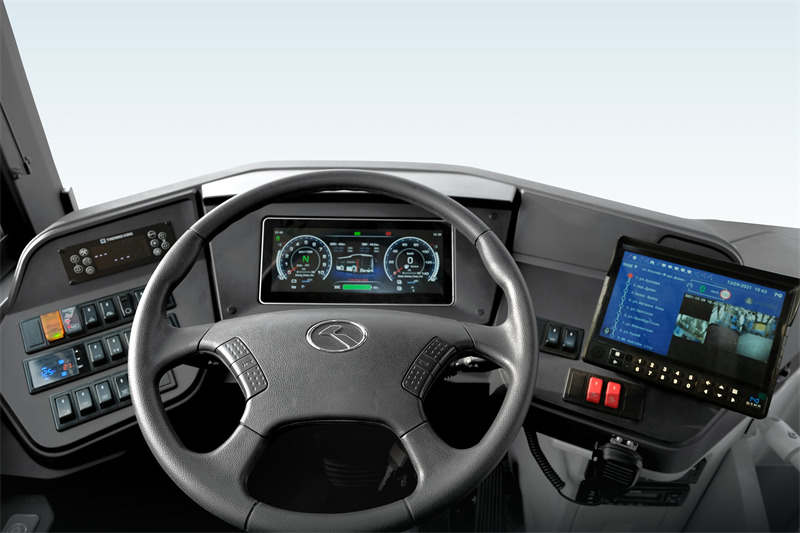

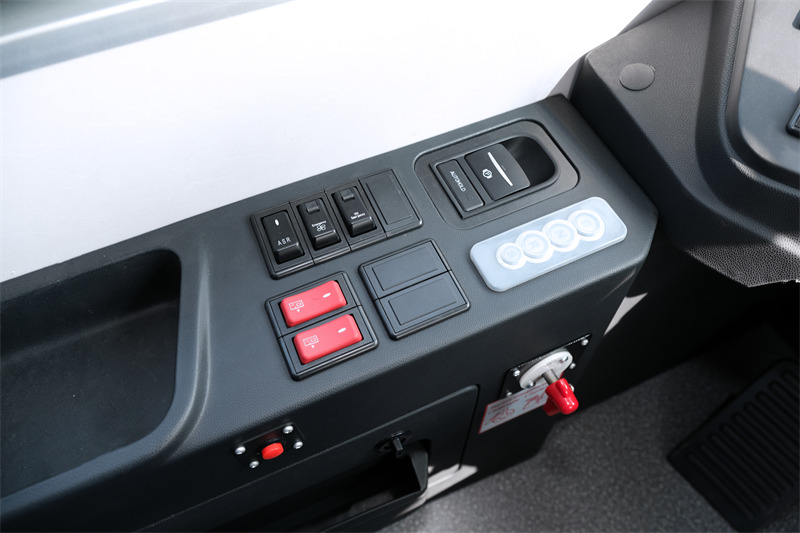

Inner of the King Long Medium Pure Electric City Bus:

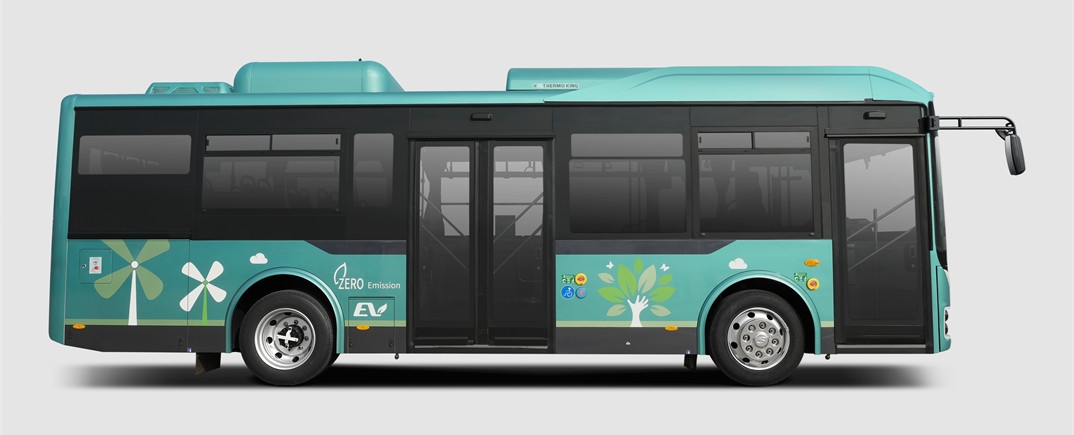

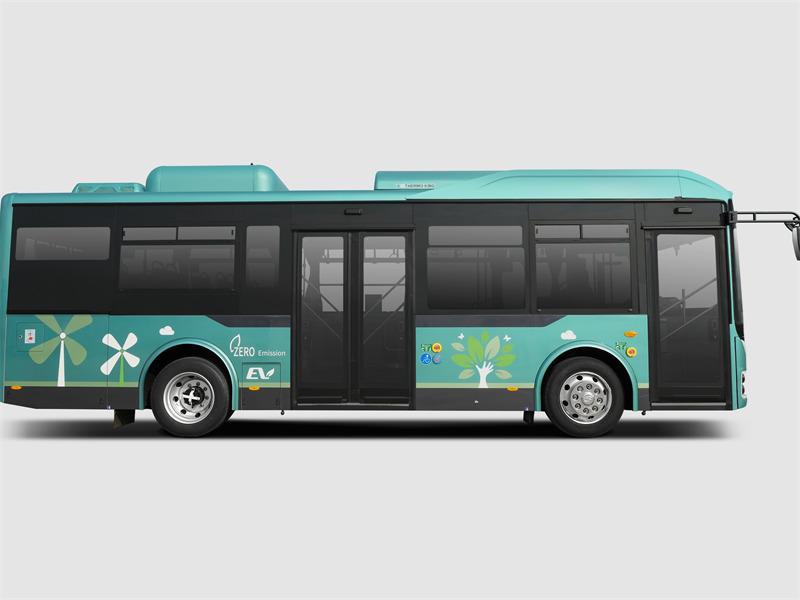

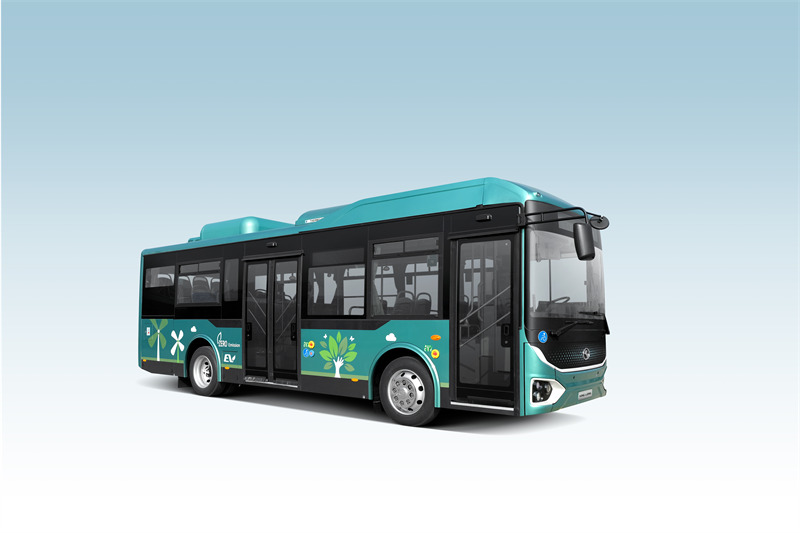

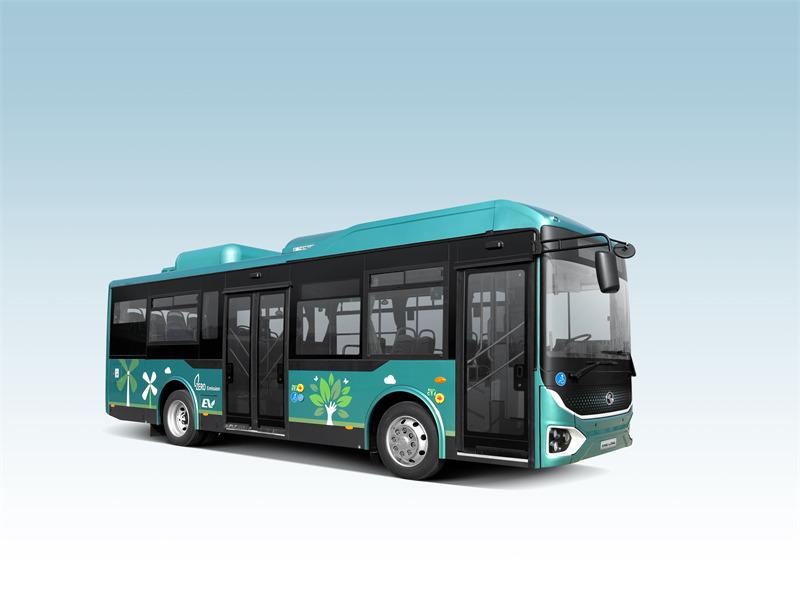

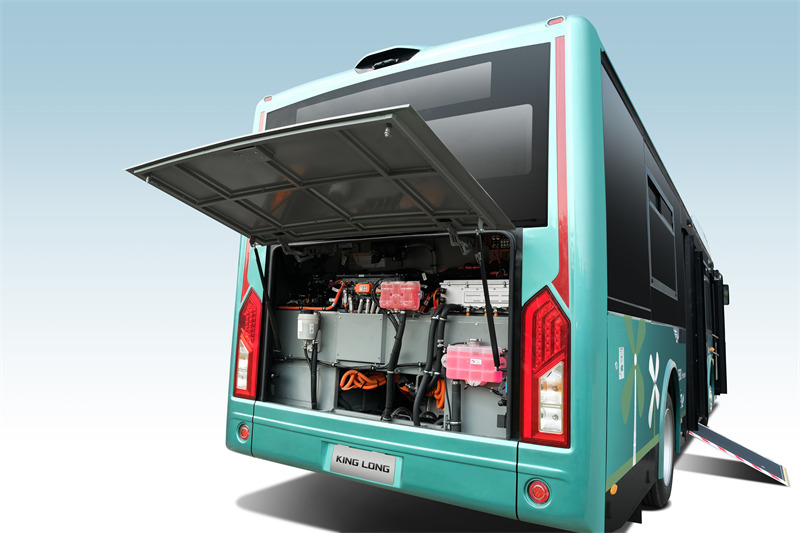

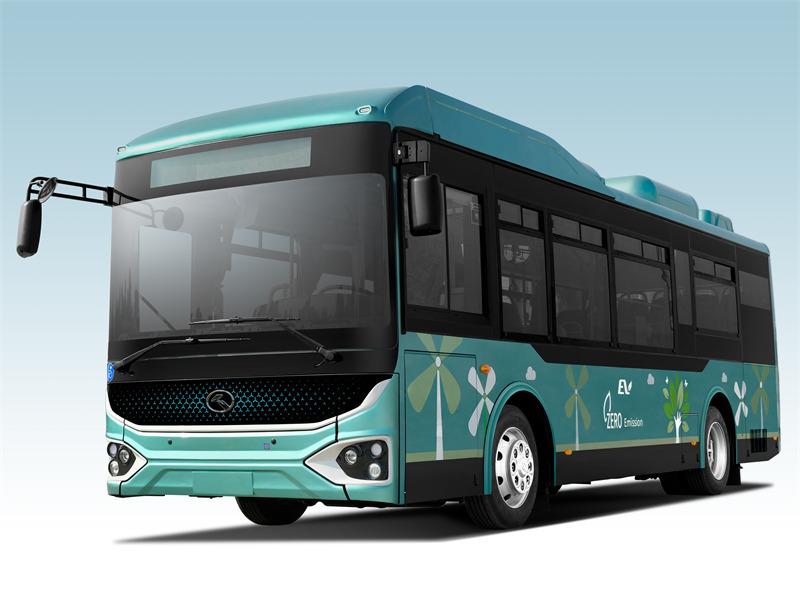

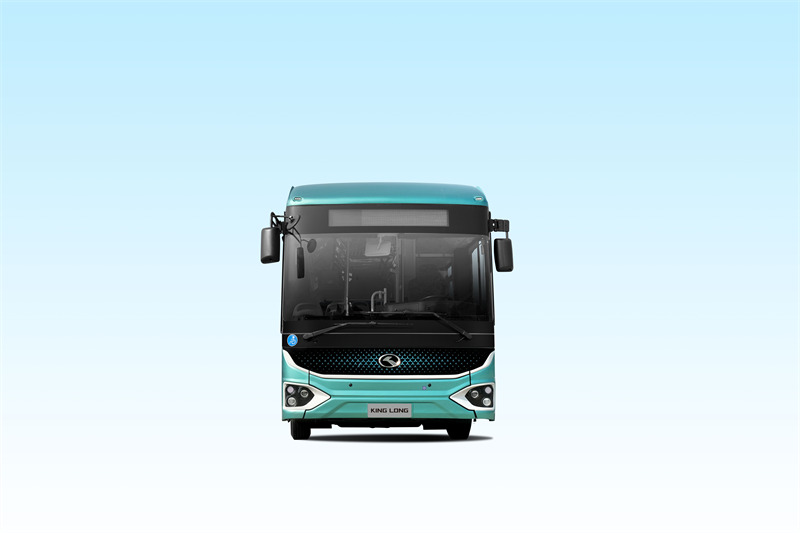

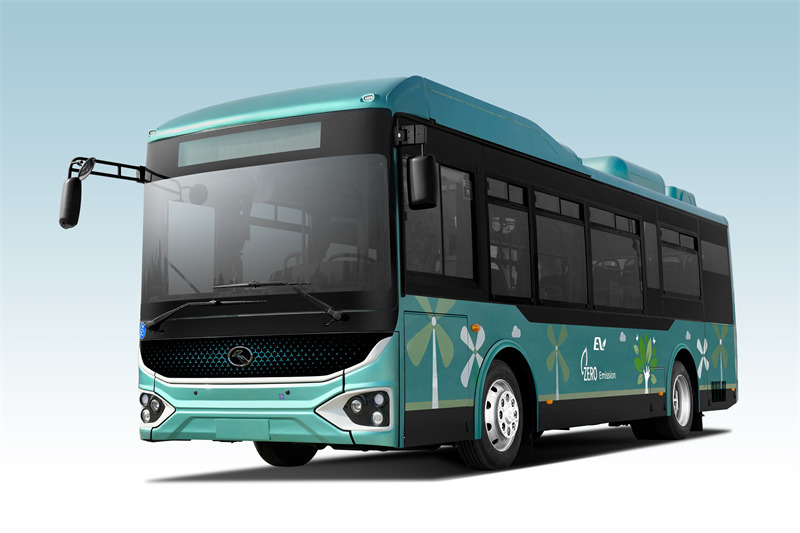

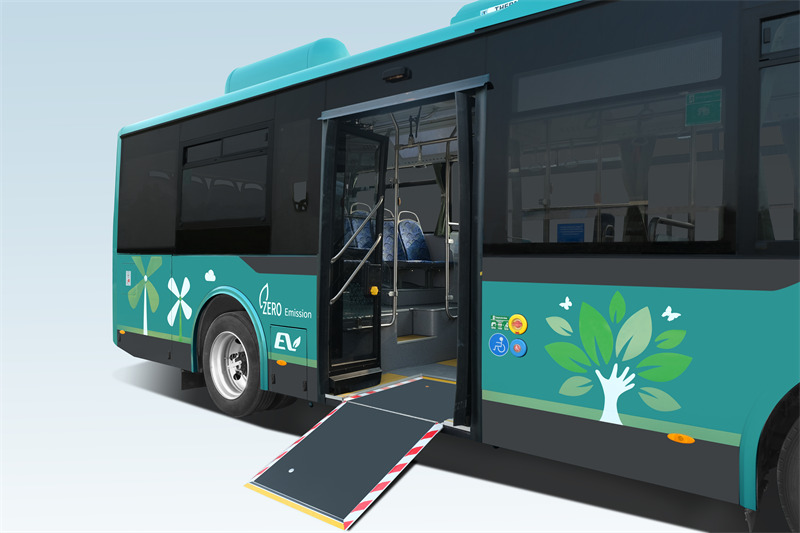

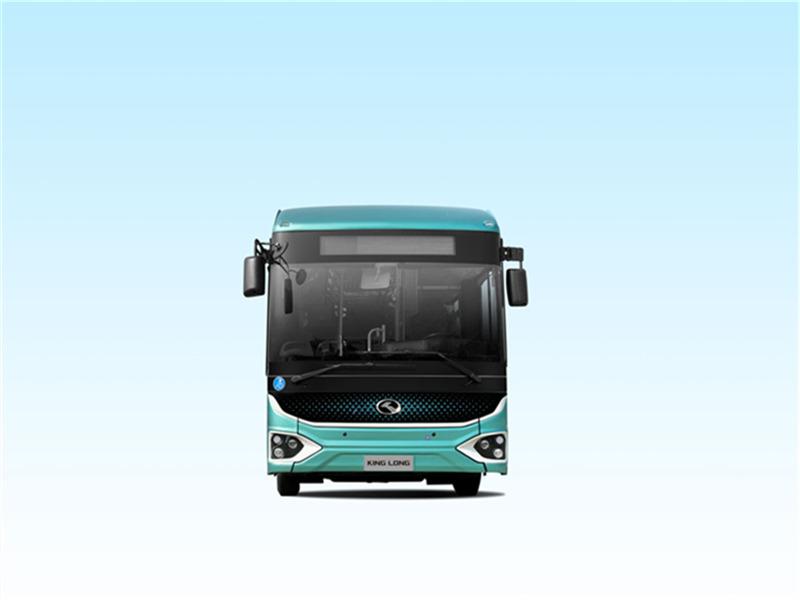

Outside of the King Long Medium Pure Electric City Bus:
