| Model | XMQ6900AYW | XMQ6996AYW | XMQ6900CYW |
| Driving (LHD/RHD) | LHD | LHD | |
| TECHNICAL PARAMETERS | |||
| Body structure | Monocoque | Monocoque | Semi-integral |
| Length*Width*Height (mm) | 9015*2500*3435 (with A/C) | 9915*2500*3435 (with A/C) | 9015*2500*3435 (with A/C) |
| Maximum speed（km/h） | 100 | 100 | 100 |
| Gradeability（%） | ＞30% | ＞30% | ＞30% |
| CAPACITY | |||
| Seats | 35+1+1 | 41+1+1 | 35+1+1 |
| Maximum passenger capacity | 37 | 43 | 37 |
| CHASSIS | |||
| Fuel tank capacity (L) | 200 | 280 | 256 |
| Engine（Hp） | 320 | 320 | 245 |
| Transmission | Automatic | Automatic | Manual |
| Suspension system | Front 2 Rear 4; Air Suspension | Front 2 Rear 4; Air Suspension | Front 2 Rear 4 ; Air Suspension |
| Front Axles（T） | 4.5 | 5.5 | 4.5 |
| Rear Axles（T） | 9.5 | 9.5 | 9.5 |
| ABS | AEBS+ESC | AEBS+ESC | ABS+ESC |
| Brake system (Disc/Drum) | Front & Rear: disc | Front & Rear: disc | Front & Rear: disc |
| Steering system | Hydraulic steering | Hydraulic steering | Hydraulic steering |
| Tire | 275/70R22.5 | 275/70R22.5 | 275/70R22.5 |
| Electromagnetic fan | King-long ICS | King-long ICS | Electromagnetic clutch |
| Body lifting device | ECAS | ECAS | Without |
| BODY | |||
| Doors | Aluminum, remote control, outward-opening | Aluminum, remote control, outward-opening | Aluminum, remote control, outward-opening |
| Side windows | ● Tempered glass ◎ Double glazed | ● Tempered glass ◎ Double glazed | ● Tempered glass ◎ Double glazed |

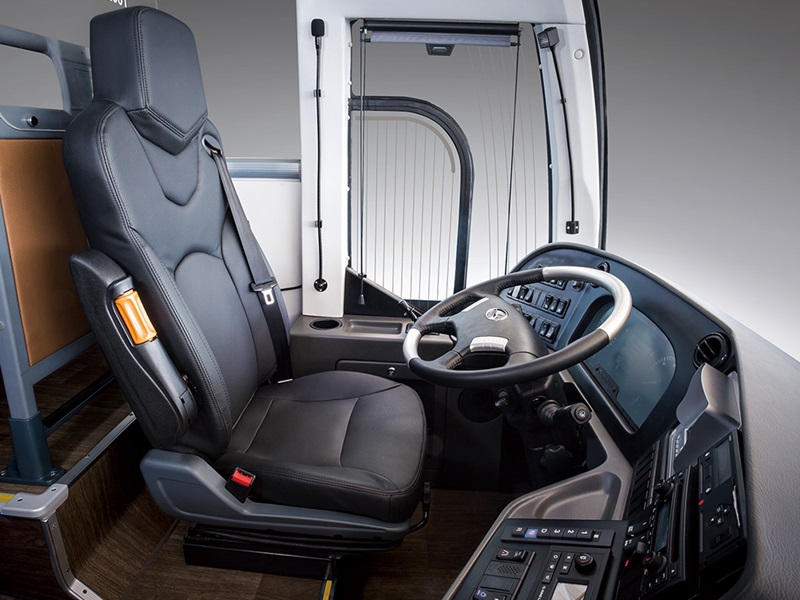

| Driver seat | ● Air-dampened, adjustable | ● Air-dampened, adjustable | ● Air-dampened, adjustable |
| Passenger seats | Adjustable passenger seat with high back | Adjustable passenger seat with high back | Adjustable passenger seat with high back |
| Mirror type | Wide view electric rear view mirrors ( with defroster) | Wide view electric rear view mirrors ( with defroster) | Wide view electric rear view mirrors ( with defroster) |
| OTHER CONFIGURATION | |||
| Air conditioner（KW） | ● 21000 Kcal/h ◎ 26000 Kcal/h | ●26000 Kcal/h | ● 26000 Kcal/h |
| Heating and defrosting states | ● Defrosting from engine heat source | ● Defrosting from engine heat source | ● Defrosting from engine heat source |
| ◎ With independent heater | ◎ With independent heater | ◎ With independent heater | |
| Electrical instrument | ● CAN Meter ◎ CAN System | ● CAN Meter ◎ CAN System | ● CAN Meter ◎ CAN System |
| Automobile data recorder | With tachograph | With tachograph | With tachograph |
| Player | ● Hard Disk Player ◎ DVD player ◎ MP3 player | ● Hard Disk Player ◎ DVD player ◎ MP3 player | ● Hard Disk Player ◎ DVD player ◎ MP3 player |
| Middle door and back-up monitor | ● LCD monitor | ● LCD monitor | ● LCD monitor |
| Guideboard | ◎ Route display | ◎ Route display | ◎ Route display |
| NEW TECHNOLOGY | |||
| On-board computer | Without | Without | Without |
| 360 panoramic view | ◎ | ◎ | ◎ |
| EPB | ◎ | ◎ | ◎ |
| Note: ● standard specification; ◎ optional specification; ※ special clarification; those without symbols are standard specification | |||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
The coach bus comes with great elegance, dynamic vigor and modern styling designed with streamline b...
Model XMQ6127KYW Driving (LHD/RHD) LHD TECHNICAL PARAMETERS Body structure Semi-integral Length * Width * Height (mm) 12500*2550*3960 Maximum speed（km/h） 125 Gradeability（%） 35 CAPACITY Seats 60+1 Maximum passenger capacity 68 CHASSIS Fuel tank capacity (L) 440 Engine（Hp） 360 Transmission Manual Suspension system Leaf spring Front Axles（T） 8 Rear Axles（T） 13 ABS ABS Brake system (Disc/Drum) Front & Rear: Drum Steering system Power steering Tire 315/80R22.5 Electromagnetic fan Silicone oil Body lifting device Without BODY Doors Aluminum, remote control, outward-opening Side windows ● Tempered glass ◎ Double glazed Driver seat ● Air-dampened, adjustable ◎ Mechanical dampened, adjustable Passenger seats Adjustable passenger seat with high back Mirror type Wide view electric rear view mirrors ( with defroster) OTHER CONFIGURATION Air conditioner（KW） ● 32000 Kcal/h ◎ 34000 Kcal/h Heating and defrosting states ● Defrosting from engine heat source ◎ With independent heater Electrical instrument ● CAN Meter ◎ CAN System Automobile data recorder ● With tachograph ◎ Without tachograph Player ● Hard Disk Player ◎ DVD player ◎ MP3 player Middle door and back-up monitor ● LCD monitor Guideboard ◎ Route Display NEW TECHNOLOGY On-board computer Without 360 panoramic view ◎ EPB ◎ Note: ● standard specification; ◎ optional specification; ※ special clarification; those without symbols are standard specification
The coach bus comes with great elegance, dynamic vigor and modern styling designed with streamline b...
FeaturesThis coach is designed with a brand-new appearance styling. The thickened cowl panel has smo...
Our brand coach bus is the perfect option for traveling long distances. Sit down, relax, recline you...
A coach bus takes the large group to any destination they want. Often groups charter long-distance t...
Exterior of 12m Coach 6127DYW01:With eyes-catching appearance and improved structural design, King L...
King Long 12m coach bus features an exquisite interior color design to create a cozy and luxurious r...
