Due to its versatility, it’s one of our most popular models. The compact body is great for maneuvering in and out of busy streets, which makes a great fit for metropolitan areas. It can serve multiple hospitals and is able to be fully customizable.

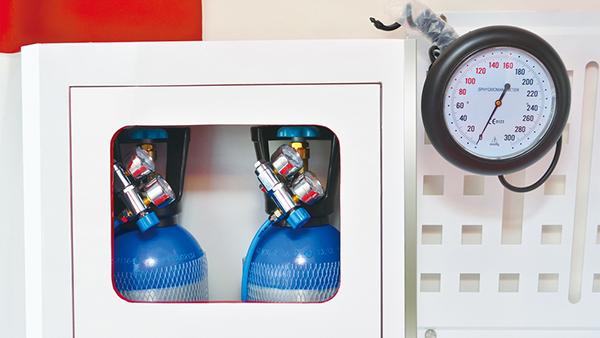

The oxygen cylinder, ultraviolet sterilizing lamp, electric ventilator, sliding infusion support, and other exclusive medical equipment are optional with a view to meet the medical demands of different conditions.
| Length×Width×Height (mm) | 5470×1885×2285 |
| Wheelbase (mm) | 3110 |
| Seats No. | 6 |
| Body Structure | Monocoque body |
| Engine | 4RB2, G4BA-4, DK4B, DK5 |
| Displacement (L) | 2.4, 2.7, 2.5, 3.0 |
| Max Power (kW/rpm) | 102/4600-5000, 110/4800, 85/3800, 110/3400 |
| Max Torque (N·m/rpm) | 217/2600-3200, 245/3600 |
| Transmission | 5MT |
| Suspension | Front Macpherson independent suspension, rear leaf spring |
| Brake System | Front disc/Rear drum |
| Assistant Braking System | ABS+EBD |
| Tyre | 195R15C |
| Medical Equipment | With sliding window |
| Front & rear intercommunication system | |
| Polymeric material for baffle | |
| Ceiling system: steel glass fiber environment material | |
| Spealized medical floor | |
| 2KG fire extinguisher and support bracket (1 set) | |
| Alloy waste pail | |
| Medical cupboard | |
| Transfusion support | |
| Folding & scoop stretcher | |
| Head immobilizer | |
| Traction splint | |
| Neck collar | |
| Back board | |
| Refrigerator (12V) | |
| Fluid tank | |
| Stop clock | |
| Wall mounted sphygmomanometer | |
| Portable suction aspirator | |
| Humidifier and oxygen flow meter | |
| Emergency medical kit |
